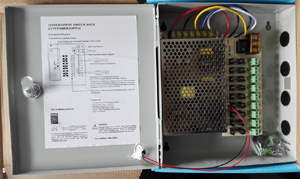

CCTV power supply box
CCTV power supply box



        ·Small volume,low weight,high efficiency

        ·Protections:short circuit/over load

        ·Indicator for power on/charge/electric supply(LED)

        ·100% full load burn-in test

        ·Battery protection at low voltage

        ·2 Years warranty

Model

SCPS-1203-4

SCPS-1205-6

SCPS-1210-9

SCPS-1220-18

SCPS-1230-18

  output

DC voltage

12VDC

12VDC

12VDC

12VDC

12VDC

Rated current

3A

5A

10A

20A

30

Channel

4

6

9

18

18

Setup,rise,hold time

800ms,50ms,80ms/230VAC,  1600ms,50ms,16ms/115VAC

 input

Voltage range

100-130VAC  or 200-240VAC

frequency

50/60HZ

AC current

0.9A/115VAC0.45A/230VAC

Inrush current

Cold start current 25A/115VAC45A/230VAC

Leakage current

< 1mA/240VAC

Function

UPS introduction

long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop charging when its full,prevent over charging. Effectively extend battery life,AC/battery auto switch ,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS,Meet the users emergency needs

environment

Working temp,humidity

-10~+6020%~90%RH

Storagetemp,humidity

-20~+8510%~95%RH non-condensing

Withstand vibration

10~500HZ2G 10min/1cycleperiod for 60 minuteseach axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Compliance to UL60950-1

EMC standard

Compliance to EN55022CLASSB
