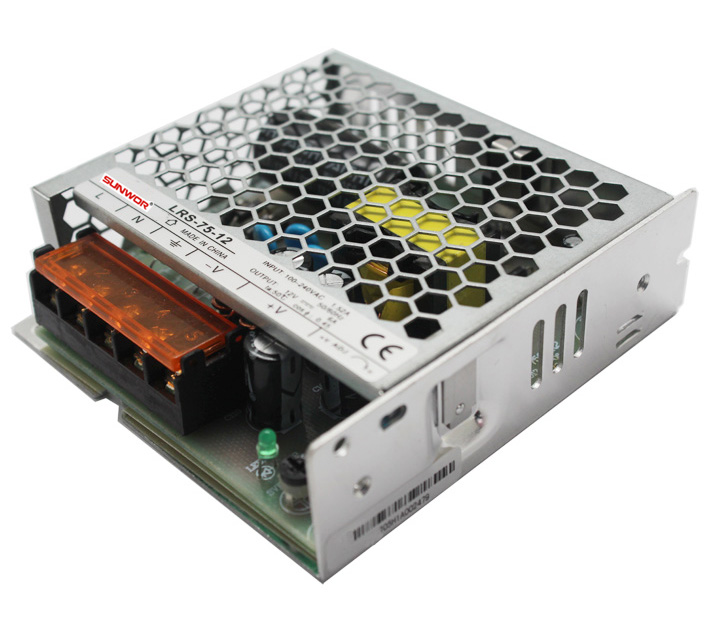

75W Single Output Switching Power Supply LRS-75





Features:

Universal AC input/ full range

Withstand 300VAC surge input for 5 seconds

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

LED indicator for power on

100% full load burn-in test

High operating temperature up to 70℃

High efficiency, long life and high reliability

2 years warranty



SPECIFICATION



OUTPUT



Model

LRS-75-5

LRS-75-12

LRS-75-15

LRS-75-24

LRS-75-36

LRS-75-48

DC Voltage

5V

12V

15V

24V

36V

48V

Rated Current

14A

6A

5A

3.2A

2.1A

1.6A

Current Range

0~14A

0~6A

0~5A

0~3.2A

0~2.1A

0~1.6A

Rated Power

70W

72W

75W

76.8W

75.6W

76.8W

Ripple&Noise

100mVp-p

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

VoltageAdj. Range

4.5 ~ 5.5V

10.2~ 13.8V

13.5~18V

21.6~28.8V

32.4~39.6V

43.2~52.8V

Voltage Tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup,Rise Time

500ms, 30ms/230VAC   500ms, 30ms/115VAC at full load

Hold Up Time

60ms/230VAC   12ms/115VAC at full load





INPUT



Voltage Range

85 ~ 264VAC    120 ~ 373VDC

Frequency Range

47 ~ 63Hz

Efficiency

86.5%

89%

89%

90%

91.5%

91.5%

AC Current

1.4A/115VAC  0.85A/230VAC

Inrush Current

Cold start 50A/230VAC

Leakage Current

<0.75mA / 240VAC





PROTECTION



Over Load

110 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

5.75~6.75V

13.8~16.2V

18.75~21.75V

28.8~33.6V

41.4~48.6V

55.2~64.8V

Protection type: shut down o/p voltage, re-power on to recover





ENVIRONMENT



Working Temp.

-30 ~ +70 (Refer to “derating curve”)

Working Humidity

20 ~ 90% RH non-condensing

StorageTemp., Humidity

-40 ~ +85, 10 ~ 95% RH

Temp. Coefficient

±0.03%/ (0 ~ 50)

Vibration

10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes





SAFETY



Safety Standards

UL60950-1, TUV EN60950-1, EN60335-1/-2-16, CCC GB4943 approved

Withstand Voltage

I/P-O/P:3.75KVAC   I/P-FG:2KVAC  O/P-FG:1.25KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

EMC Emission

Compliance to EN55022(CISPR22), GB9254 CLASS B, EN55014 EN 61000-3-2,-3

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), heavy industry level, criteria A





OTHERS



Dimension

99*82*30mm (L*W*H)

Weight

0.30 kg





NOTE



1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. Line regulation is measured from low line to high line at rated load.

5. Load regulation is measured from 0% to 100% rated load.

6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.

7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time
