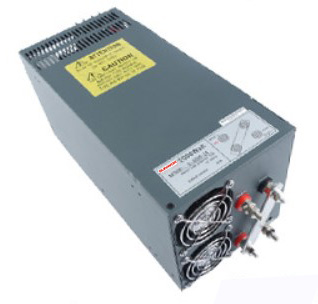

3000W Single Output Switching Power Supply S-3000




Technical Data

MODEL

S-3000-12

S-3000-24

S-3000-27

S-3000-36

S-3000-48

S-3000-60

OUTPUT

DC VOLTAGE

12V

24V

27V

36V

48V

60V

RATED CURRENT

250A

125A

111A

83A

62.5A

50A

CURRENT RANGE

0 ~ 250A

0 ~125A

0 ~ 111A

0 ~ 83A

0 ~ 62.5A

0 ~ 50A

RATED POWER

3000W

3000W

3000W

3000W

3000W

3000W

RIPPLE & NOISE (max.)

240mVp-p

240mVp-p

280mVp-p

320mVp-p

380mVp-p

420mVp-p

VOLTAGE ADJ.RANGE

20 ~ 26.4V

20 ~ 26.4V

26 ~ 32V

33 ~ 39V

44 ~ 52V

56 ~ 66V

VOLTAGE TOLERANCE

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE, HOLD TIME

200ms, 50ms, 20ms at full load

INPUT

VOLTAGE RANGE

90-132VAC /180-264VAC by switch

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

84%

84%

84%

86.0%

87.0%

88%

AC CURRENT

40A/115V  20A/230V

INRUSH CURRENT (max.)

45A/115V  90A/230V

LEAKAGE CURRENT

<3.5mA / 240VAC

PROTECTION

OVERLOAD

105 ~ 135% of rate load

Protection type : Fold back current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

13.8 ~ 16.2V

27.6 ~ 32.4V

32 ~ 37V

39~ 48V

52 ~65V

66 ~ 89V

Protection type : Hiccup mode, recovers automatically after fault condition is removed.

FAN CONTROL,O.T.P.

RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down

ENVIRONMENT

WORKING TEMP.

-10 ~ +60ºC, 20 ~ 90% RH non-condensing

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85ºC, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/ºC (0 ~ 50ºC)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY

SAFETY STANDARDS

Design refer to UL1950, TUV EN60950-1

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN63000-3-2,-3

EMS IMMUNITY

Compliance to EN63000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A

Others

DIMENSION

291*132*136mm (L*W*H)

WEIGHT

5.30 Kg

Note
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.Line regulation:min&max voltage of the rated load.
5.Load regulation:load from 0 to 100%
