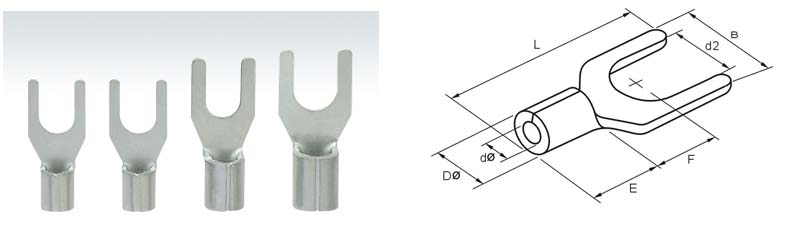

Furcate Naked Terminal

Furcate Naked Terminal


1.Cable size:0.5～1.5mm2(A.W.G.22～16)

 Max current:Imax=19A    Material:purple copper 　   Thickness:0.75mm

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

B

L

F

E

Dφ

dφ



SNB 1.25-3

#4

3.2

5.7

16.0

6.5

4.8

3.4

1.7



SNBS 1.25-3.5

#6

3.7

5.7

16.0

6.5



SNBL 1.25-3.5

#6

3.7

6.4

16.0

6.5



SNBS 1.25-4

#8

4.3

6.4

16.0

6.5



SNBM 1.25-4

#8

4.3

7.2

16.0

6.5



SNBL 1.25-4

#8

4.3

8.1

16.0

6.5



SNBS 1.25-5

#10

5.3

8.1

16.0

6.5



SNBL 1.25-5

#10

5.3

9.5

16.0

6.5



SNBS 1.25-6

1/4

6.4

9.5

16.0

6.5



SNBL 1.25-6

1/4

8.4

12.0

22.0

11.0



2.Cable size:1.5～2.5mm2(A.W.G.16～14)

Max current:Imax=27A    Material:purple copper 　   Thickness:0.8mm

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

B

L

F

E

Dφ

dφ



SNB 2-3

#4

3.2

5.7

16.0

6.5

4.8

4.1

2.3



SNBS 2-3.5

#6

3.7

5.7

16.0

6.5



SNBL 2-3.5

#6

3.7

6.0

16.0

6.5



SNBS 2-4

#8

4.3

6.4

16.0

6.5



SNBM 2-4

#8

4.3

7.2

16.0

6.5



SNBL 2-4

#8

4.3

8.1

16.0

6.5



SNBS 2-5

#10

5.3

8.1

16.0

6.5



SNBL 2-5

#10

5.3

9.5

16.0

6.5



SNBS 2-6

1/4

6.4

9.5

16.0

6.5



SNBL 2-6

1/4

6.4

12.0

22.0

11.0



3.Cable size:2.5～4mm2(A.W.G.14～12)

Max current:Imax=37A    Material:purple copper 　  Thickness:1.0mm

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

B

L

F

E

Dφ

dφ



SNB 3.5-4

#8

3.2

5.7

18.3

7.0

6.0

5.0

3.0



SNBS 3.5-5

#10

4.3

8.0

18.3

7.0



SNBL 3.5-5

#10

5.3

8.0

18.3

7.0



SNB 3.5-6

1/4

6.4

12.0

21.5

12.1



4.Cable size:4～6mm2(A.W.G.12～10)

Max current:Imax=48A    Material:purple copper 　   Thickness:1.0mm

Type

USA screw

Bolt dia.d2

 (mm)

尺寸

B

L

F

E

Dφ

dφ



SNB 5.5-3.5

#6

3.7

8.3

19.5

7.5

6.8

5.6

3.4



SNBS 5.5-4

#8

4.3

8.3

19.5

7.5



SNBL 5.5-4

#8

4.3

9.0

19.5

7.5



SNB 5.5-5

#10

5.3

9.0

19.5

7.5



SNBS 5.5-6

1/4

6.4

9.0

19.5

7.5



SNBL 5.5-6

1/4

6.4

12.0

25.5

12.0



SNB 5.5-8

5/16

8.4

14.0

24.5

11.5



5.Other Type

   Material:purple copper 　   Thickness: 1.2mm  1.4mm  1.7mm.

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

B

L

F

E

Dφ

dφ



SNB 8-4

#8

4.3

8.7

23.0

6.0

8.5

7.2

4.5



SNB 8-5

#10

5.3

12.0

24.5

5.7

8.5

7.2

4.5



SNB 8-6

1/4

6.4

12.0

24.5

5.7

8.5

7.2

4.5



SNB 8-8

5/16

8.4

14.5

28.0

8.3

8.5

7.2

4.5



SNB 14-6

1/4

6.4

12.0

28.0

7.5

10.5

9.0

5.8



SNB 14-8

5/16

8.4

14.0

28.0

7.5

10.5

9.0

5.8



SNB 22-8

5/16

8.4

14.0

34.5

9.0

12.0

11.5

7.7
