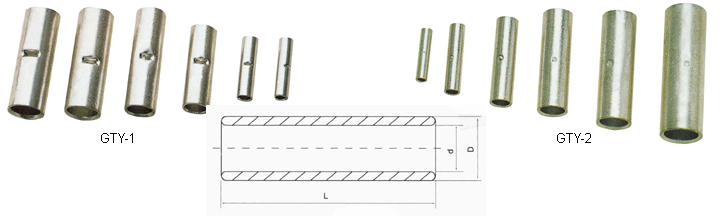

GTY Copper Connecting Tube
Application
These fittings are applicable for the connection of the circular wire, hemicyde wire with power supply cable in distribution equipment.
They are made of 99.9% pure T2 copper tube, and coated tin.
Technical Data
|
Type |
D(mm) |
d(mm) |
L(mm) |
|
GTY-1.5 |
3.7 |
1.8 |
20 |
|
GTY-2.5 |
4 |
2.5 |
20 |
|
GTY-4 |
4.8 |
3.1 |
20 |
|
GTY-5.5 |
5.5 |
3.8 |
20 |
|
GTY-10 |
6.8 |
4.8 |
25 |
|
GTY-16 |
7.5 |
5.5 |
30 |
|
GTY-25 |
9 |
7 |
35 |
|
GTY-35 |
10.5 |
8.2 |
40 |
|
GTY-50 |
12.5 |
9.8 |
45 |
|
GTY-70 |
14.5 |
11.5 |
50 |
|
GTY-95 |
17.5 |
13.5 |
55 |
|
GTY-120 |
19.5 |
15 |
60 |
|
GTY-150 |
21 |
16.5 |
70 |
|
GTY-185 |
23.5 |
18.5 |
75 |
|
GTY-240 |
26.5 |
21 |
80 |
|
GTY-300 |
30 |
24 |
85 |
|
GTY-400 |
34 |
27 |
90 |
|
GTY-500 |
38 |
30 |
100 |
|
GTY-630 |
45 |
35 |
110 |
|
GTY-800 |
50 |
39 |
150 |
|
GTY-1000 |
56 |
44 |
170 |
