Tube Pre-insulating Terminal

Tube Pre-insulating Terminal

Max voltage: 105 Ui=300V  Material:purple copper     Insulating material:nylon

Type

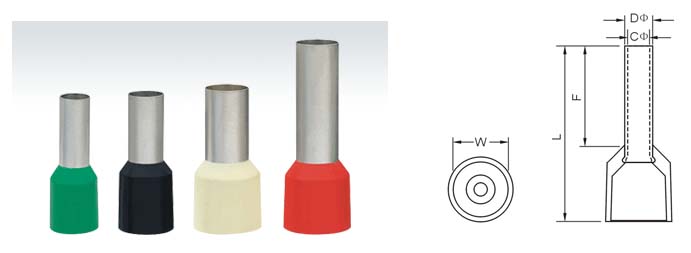

Dimension(mm)

Cable sector area
(mm2)

Insulating tube color
(1)Germanytype
(2)French type

F

L

W

Dφ

Cφ

A.W.G



E 0506

6.0

12.0

2.5

1.3

1.0

# 22

0.5

(1)orange
(2)white



E 0508

8.0

14.0



E 0510

10.0

16.0



E 0512

12.0

18.0



E 7506

6.0

12.4

2.8

1.5

1.2

# 20

0.75

(1)white
(2)blue



E 7508

8.0

14.6



E 7510

10.0

16.4



E 7512

12.0

18.4



E 1006

6.0

12.4

3.0

1.7

1.4

# 18

1.0

(1)yellow
(2)red



E 1008

8.0

14.6



E 1010

10.0

16.4



E 1012

12.0

18.4



E 1508

8.0

14.6

3.5

2.0

1.7

# 16

1.5

(1)red
(2)black



E 1510

10.0

16.4



E 1512

12.0

18.4



E 1518

18.0

24.4



E 2508

8.0

15.2

4.0

2.6

2.3

# 14

2.5

(1)blue
(2)grey



E 2510

10.0

17.2



E 2512

12.0

19.2



E 2518

18.0

25.2



E 4009

9.0

16.5

4.4

3.2

2.8

# 12

4.0

 (1)grey
(2)orage



E 4012

12.0

19.5



E 4018

18.0

25.5



E 6010

10.0

18.0

6.3

3.9

3.5

# 10

6.0

(1)black
(2)green



E 6012

12.0

20.0



E 6018

18.0

26.0



E 10-12

12.0

21.5

7.6

4.9

4.5

# 7

10.0

(1)milk white
(2)brown



E 10-18

18.0

27.5



E 16-12

12.0

22.2

8.8

6.2

5.8

# 5

16.0

1)green
(2)milk
white



E 16-18

18.0

28.2



E 25-16

16.0

29.0

11.2

7.9

7.5

# 4

25.0

(1)brown
(2)black



E 25-22

22.0

35.0



E 35-16

16.0

30.0

12.7

8.7

8.3

# 2

35.0

grey



E 35-25

25.0

39.0



E 50-20

20.0

36.0

15.3

10.9

10.3

# 1

50.0

olive



E 50-25

25.0

41.0
