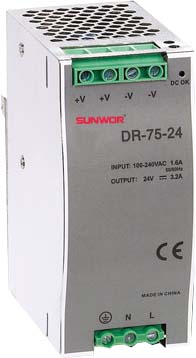

75W Din-rail Power Supply

75W Din-rail Power Supply

Features:
        ·universal AC input

        ·Small volume,low weight,high efficiency

        ·Protections:short circuit/over load/over voltage

        ·cooling by free air convectio

        ·can be installed on DIN rail: TS-35/7.5 or TS-35/15

        ·LED indicator for power on

        ·100% full load burn-in test

        ·2 Year warranty

Model

DR-75-12

DR-75-24

DR-75-48




output

DC voltage

12V

24V

48V

Voltage tolerance

±2%

±1%

±1%

Rated current

6.3A

3.2A

1.6A

Current range

0~6.3A

0~3.2A

0~1.6A

Rated power

76W

76.8W

76.8W

Ripple&noise

100mvp-p

150mvp-p

200mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%



input

Voltage range

90~264VAC,127~373VDC

frequency

47~63HZ

AC current

1.6A/110VAC,0.96A/220VAC

efficiency

79%

81%

84%

Inrush current

Cold start current  20A/115VAC,40A/230VAC

Leakage current

< 1mA/240VAC


protection

Over load

Rated output power110%~150%  start over load protection

protection type :rated current limit ,auto-recovery after fault condition is removed

over voltage

15.6~17.8V

30.6~33.2V

54.8~56.6V

protection type:cutoff output,recovery after restart power

environment

Working temp,humidity

-20℃~+60℃,20%~90%RH

Storagetemp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

standard

Safety standard

UL1012

EMC standard

EN55022,CLASSA

others

Dimension

55.5*125.2*100mm (L*W*H)

Weight

0.60kg
