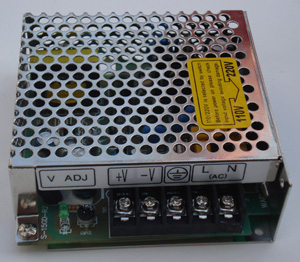

S-15

15W Single Output Switching Power Supply




Technical Data

Index Type

S-15-5

S-15-12

S-15-24

Dc Voltage

5V

12V

24V

Voltage Tolerance

±2%

±1%

±1%

Rated Current

3A

1.3A

0.7A

Current Range

0-3A

0-1.3A

0-0.7A

Ripple&Noise(Max.)

50mVp-p

50mVp-p

100mVp-p

Line Regulation

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±0.5%

±0.5%

Rated Power

15W

15.6W

16.8W

Efficiency

65%

68%

72%

Voltage Adjust Range

+10 -5%

±10%

±10%

Voltage Range

85132VAC/170264VAC auto switch4763Hz;240370VDC

Ac Current

0.5A/115V0.25A/230V

Inrush Current(Max.)

cold start current 15A/115V30A/230V

Leakage Current

<0.5mA/240VAC

Overload Protection

105%150% typecurrent limitation, auto recovery

Over-voltage Protection

......................

Over-temperature Protection

......................

Temp. Coefficient

±0.02%/(050)

Setup.Rise,Hold Time

200ms,100ms,30ms

Vibration

10500Hz,2G10min,/1 cycle,60min,each axes

Withstand Voltage

I/P-O/P :3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated Resistor

I/P-O/P,I/P-FG,O/P-FG:500VDC/100MΩ

Working Temp. Humidity

-10+60(REFER TO CHARACTER CURVE),20%90RH

Storage Temp. Humidity

-20+85,10%95%RH

Dimension

99×97×35mm

Weight

0.30kg

Safety Standards

UL1012

EMC standards

FCC part1.5J  class B

Note
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.
5.load regulation:load from 0 to 100%.
