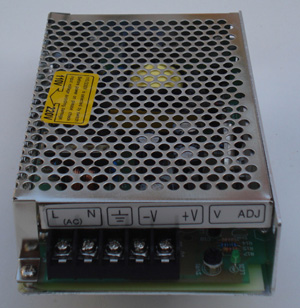

S-50

50W Single Output Switching Power Supply



Technical Data

Index Type

S-50-5

S-50-12

S-50-15

S-50-24

DC Voltage

5V

12V

15V

24V

Voltage Tolerance

±2%

±1%

±1%

±1%

Rated Current

10A

4.2A

3.4A

2.1A

Current Range

10A

4.2A

3.4A

2.1A

Ripple&Noise(Max.)

75mVp-p

100mVp-p

100mVp-p

100mVp-p

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±0.5%

±0.5%

±0.5%

Rated Power

50W

50.42W

51W

50.4W

Efficiency

71%

78%

78%

82%

Voltage Adjust Range

+10 -5%

±10%

±10%

±10%

Voltage Range

85132VAC/170-264VACauto switch4763Hz;240370VDC

AC Current

1.3A/115V0.65A/230V

Inrush Current(Max.)

cold start current 18A/115V36A/230V

Leakage Current

<0.5mA/240VAC

Overload Protection

105%150%TYPECurrent limitation auto recovery

Over-voltage Protection

......................

Over-temperature Protection

......................

Temp.Coefficient

±0.03%/(050)

Setup.Rise,Hold Time

200ms,100ms,20ms

Vibration

10500Hz,2G10min,/11cycle,60min,each axes

Withstand Voltage

I/P-O/P:3KVACI/P-FG:1.5KVACI/P-FG:0.5KVAC

Isolated Resistor

I/P-O/P,I/P-FG,I/P-FG:500VDC/100MΩ

Working Temp.Humidity

-10+60(REFER TO CHARACTER CURVE),20%90RH

Storage Temp.Humidity

-20+85,10%95%RH

Dimension

159×97×38mm

Weight

0.50kg

Safety Standards

UL1012

EMC standards

 FCC PART15J class B





Note
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation.
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.
5.load regulation:load from 0 to 100%
